ENEE 684 Lecture 8

Overview

Ergun Simsek closes the ABCD-matrix treatment of two-mirror laser resonators, deriving the round-trip stability condition and relating it to mirror curvature and spacing. He then introduces optical-pulse propagation: broadband pulses experience frequency-dependent propagation, described through group velocity, Taylor coefficients β₁ and β₂, and material dispersion; he shows how Sellmeier models and geometric dispersion can guide dispersion management.

Key takeaways

For a lossless two-mirror cavity, the round-trip ABCD matrix has determinant one; its eigenvalues remain bounded when |(A + D)/2| ≤ 1.
The cavity stability parameters g₁ = 1 − D/R₁ and g₂ = 1 − D/R₂ give the design condition 0 ≤ g₁g₂ ≤ 1; operating away from the boundary improves tolerance to alignment errors.
A broadband optical pulse contains multiple frequencies, so frequency-dependent β causes its components to accumulate different phase and generally broadens the pulse.
The Taylor coefficients of β(ω) have direct physical meaning: β₁ = 1/v_g and β₂ is group-velocity dispersion, the leading term responsible for narrowband pulse spreading.
Sellmeier models make it possible to calculate material dispersion from refractive-index data, but wavelength units and the choice of uniform wavelength versus frequency sampling must be handled consistently.
Near-zero net dispersion can be engineered by balancing material and geometric dispersion; Simsek cites fused silica’s near-zero material-dispersion region around 1.27 μm as an example.

Chapters

0:00 ABCD Matrices and Two-Mirror Laser Resonators

Simsek reviews the ABCD matrix as a geometric-optics tool for designing optical setups without tracking wavelength-dependent phase.
The laser cavity is simplified to two mirrors separated by distance D; mirror curvature and spacing determine whether the circulating beam remains stable.
Parallel-plane, concentric, and confocal resonators are introduced as familiar two-mirror configurations.

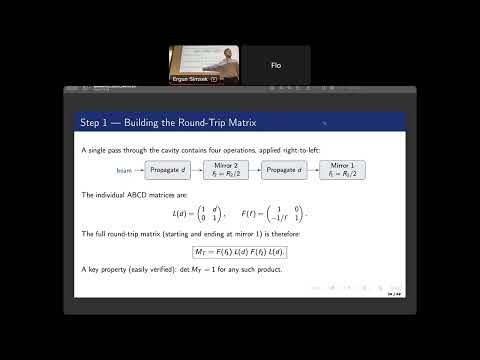

4:10 Building the Round-Trip Matrix for a Laser Cavity

A round trip consists of propagation over D, reflection at mirror 2, propagation back over D, and reflection at mirror 1.
Free-space propagation uses a matrix with D in its upper-right entry; a mirror is represented by a thin-lens matrix with focal length F.
For a lossless round-trip matrix M, the determinant is one, and repeated cavity passes are represented by powers Mⁿ.

7:00 Eigenvalues Establish the Resonator Stability Condition

The characteristic equation for the lossless matrix is λ² − (A + D)λ + 1 = 0.
Writing m = (A + D)/2 gives eigenvalues m ± √(m² − 1).
When |m| < 1, the eigenvalues lie on the unit circle and repeated round trips remain bounded; |m| > 1 produces an eigenvalue whose powers grow.
The boundary |m| = 1 is marginal or critical, rather than robustly stable.

11:30 Mirror Curvature and Spacing Define the g-Parameter Criterion

Simsek defines g₁ = 1 − D/R₁ and g₂ = 1 − D/R₂, where R₁ and R₂ are the mirrors’ radii of curvature.
Substitution into the round-trip matrix gives the standard stability region 0 ≤ g₁g₂ ≤ 1, with the interior providing greater tolerance than the boundary.
The product g₁g₂ turns the matrix condition into a direct design check on cavity length and mirror curvature.

15:00 Stability Diagram, Fragile Boundaries, and Optical Design

Two plane mirrors have R₁ and R₂ approaching infinity, so g₁g₂ = 1; concentric mirrors also sit at the stability boundary.
A confocal cavity with D = R₁ = R₂ has g₁ = g₂ = 0, placing it at the center of the stability diagram.
Simsek cautions that boundary configurations are sensitive to tiny alignment or spacing errors and connects mirror geometry to practical optical instruments.
A student’s question about structured and grating-based optics leads to a distinction between geometric optics and wave-optics or numerical scattering analysis.

23:50 Course Roadmap: From ABCD Matrices to Pulse Propagation

At about 23:50, Simsek begins Chapter 6, shifting from ray-based ABCD analysis to propagation of optical pulses.
Upcoming topics include dispersion, chirping, dielectric waveguides, ring resonators, and optical-frequency-comb generation.
He notes that lecture notes and slides are posted, with the notes subject to revisions as typographical errors are corrected.

27:10 Why Broadband Optical Pulses Disperse

A monochromatic wave carries no modulated data by itself; encoding information creates a pulse containing a range of frequencies.
Refractive index and propagation constant β vary with frequency, producing material dispersion; guided structures can also produce geometric dispersion.
A MATLAB animation distinguishes the envelope’s group velocity from the velocity of individual constant-phase electric-field oscillations.

33:00 Gaussian Pulses in Time and Frequency Domains

A Gaussian pulse has a bell-shaped envelope in time and a Gaussian spectrum after a Fourier transform.
A pulse narrow in time is broad in frequency, while a narrow frequency spectrum corresponds to a pulse extended in time.
The time-bandwidth relationship provides a way to reason about pulse broadening in both temporal and spectral views.

38:40 Effective Index and Fourier-Domain Pulse Propagation

For a guided mode, the effective index is n_eff = β/k₀; a confined mode lies between the core index n₁ and surrounding index n₂.
The frequency-domain field is transformed into the time domain with an inverse Fourier transform and acquires a propagation factor involving β(ω)z.
Simsek recommends consulting refractiveindex.info and checking model and temperature assumptions when assembling material-index data.

44:30 A Propagating Medium Acts as a Pulse-Shape Filter

The propagation factor depends on the medium and distance, so the material or waveguide acts like a frequency-dependent filter on the input pulse.
In dispersive propagation, the pulse generally broadens in time even when attenuation is neglected.
The phase velocity is ω/β; in guided structures, phase and group velocities differ, and normal versus anomalous dispersion describes opposite wavelength-dependent trends.

53:00 Pulse Envelopes, Pulse Shapes, and Time-Bandwidth Widths

For narrowband operation, Simsek writes the field as a slowly varying envelope multiplied by a carrier near the central frequency.
He surveys Gaussian, hyperbolic-secant, rectangular, Lorentzian, and double-exponential pulse shapes, emphasizing Gaussian and sech forms.
Time and frequency full widths at half maximum, Δt and Δf, characterize the pulse; rectangular pulses have sinc-shaped spectra.
The pulse-shape-dependent time-bandwidth product matters when estimating communication limits for optical-fiber links.

58:00 Taylor Expansion, β₁, β₂, and Causality

Expanding β(ω) around a pulse’s central frequency defines β₁ as the first derivative and β₂ as the second derivative; β₃ and higher terms capture higher-order dispersion.
β₁ equals the inverse group velocity, while β₂ is group-velocity dispersion (GVD) and is central to pulse broadening.
Simsek introduces Kramers–Kronig relations: causality links the real and imaginary parts of a material’s refractive index or permittivity.
Dispersion management combines propagation sections with different dispersion so one section’s pulse expansion can be offset by another.

1:01:00 Group Index, Normal Dispersion, and Frequency Sampling

Group velocity is determined by group index, whereas phase velocity is determined by effective index.
The group-index expression includes the wavelength derivative of refractive index with a negative sign; an index decreasing with wavelength can therefore mean increasing group index and lower group velocity.
Simsek distinguishes normal and anomalous dispersion by the sign and wavelength trend of dispersion, noting that behavior differs between bulk glasses and guided structures.
Uniform wavelength samples do not become uniform frequency samples, so experimentalists and simulation teams must agree on the sampling variable.

1:06:00 Sellmeier Models and Fused-Silica Material Dispersion

Sellmeier equations model the wavelength-dependent refractive index of lossless dielectrics using resonance-related coefficients.
The coefficients for fused silica and sapphire require careful unit handling because wavelength may be specified in micrometers, meters, or nanometers.
For fused silica over roughly 1.2–1.9 μm, the refractive index changes with wavelength, and its derivative determines group index and material dispersion.
The lecture identifies a near-zero-dispersion region around 1.27 μm and positive material dispersion near the commonly used 1.55 μm wavelength.

1:10:00 Balancing Material and Geometric Dispersion

Material dispersion alone can broaden a pulse; Simsek previews geometric dispersion as a contribution that can have the opposite sign.
Careful waveguide-dimension design can balance material and geometric dispersion, producing near-zero net dispersion and better pulse-shape preservation.
The lecture ends with the next topic—geometric dispersion—and a reminder that homework is due Wednesday and course slides and notes are available.
