Overview

The lecture explains how bipolar junction transistors (BJTs) operate in common-base, common-emitter, and common-collector configurations, relating carrier flow and biasing to their input and output characteristics. It distinguishes BJT operating regions from MOSFET terminology, shows how a common-base stage can produce voltage gain, and derives the current relationships alpha = IC/IE, beta = IC/IB, and alpha = beta/(beta + 1).

Key takeaways

A BJT’s emitter-base junction must be forward biased and its base-collector junction reverse biased for the normal carrier-injection and collection operation described in the lecture.
In the BJT active region, collector current is nearly independent of collector voltage and is largely set by emitter injection, so the device can behave as a high-output-resistance current source.
BJT and MOSFET region names differ: the BJT’s nearly constant-current region is called active, while the comparable MOSFET region is called saturation.
For BJTs, IE = IC + IB and IC is approximately IE because IB is small; alpha = IC/IE is therefore close to, but less than, one.
Beta = IC/IB expresses common-emitter current gain, and the current ratios obey alpha = beta/(beta + 1) and beta = alpha/(1 - alpha).
In the illustrative common-base calculation, 200 mV across 20 ohms gives 10 mA; that current through a 5-kilohm load yields a nominal 50 V output, demonstrating the role of low input resistance and a larger output load.

Chapters

0:00 BJT Lecture Roadmap and the Transition to MOSFETs

The lecture focuses on BJT operation and characteristics; recorded lectures cover additional BJT DC and AC analysis.
MOSFETs begin the following week, with comparisons to BJT circuit analysis planned throughout the course.
Both device types will be analyzed using related DC-biasing and AC small-signal methods.

1:15 NPN and PNP Carrier Flow, Biasing, and Symbol Arrows

For normal operation, the emitter-base junction is forward biased and the base-collector junction is reverse biased.
NPN emitters inject electrons; PNP emitters inject holes, with majority carriers moving from emitter toward collector.
The BJT symbol arrow is always on the emitter and indicates conventional current direction: outward for NPN and inward for PNP.
The three possible shared terminals define common-base, common-emitter, and common-collector configurations.

7:13 Common-Base Input and Output Characteristics

In common-base operation, the base is the reference, the emitter is the input, and the collector is the output.
The input characteristic plots emitter current IE against emitter-base voltage; its diode-like shape follows from the forward-biased emitter-base junction.

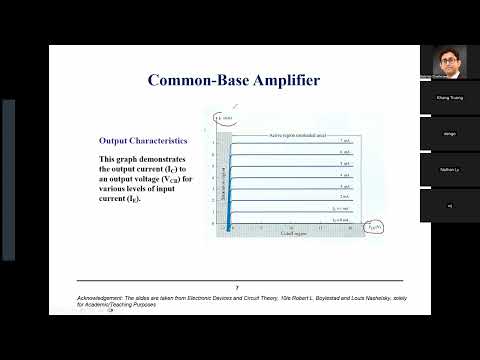

The output characteristic plots collector current IC against collector-to-base voltage, with separate curves corresponding to different input or emitter currents.
Increasing collector voltage initially improves carrier collection, but collector current becomes limited by the carriers injected at the emitter.

18:06 BJT Cutoff, Linear, and Active Regions—and MOSFET Naming

Cutoff occurs when the emitter-base junction is not forward biased and the input current is approximately zero.
In the BJT linear region—called the saturation region in BJT terminology—collector current changes with collector voltage.
In the BJT active region, collector current is nearly constant as collector voltage changes; MOSFET terminology calls the analogous constant-current region saturation.
The active-region characteristic makes a BJT useful as a current source, since its output current changes little with output voltage.

28:13 Current-Source Output Resistance and the Alpha Ratio

Small-signal output resistance is described by delta V divided by delta I; in the active region, a small delta I for a large delta V implies high output resistance.
Kirchhoff’s current law gives IE = IC + IB, and because base current is small, IC is approximately equal to IE.
The common-base current ratio alpha is IC/IE, typically close to 1 but below it; the lecture gives an approximate range of 0.9 to 0.998.
The forward-biased silicon base-emitter junction typically has a voltage drop of about 0.7 V.

30:39 Illustrative Common-Base AC Voltage Gain

The example uses a 200 mV AC input and a stated 20-ohm input resistance, giving an input current of 10 mA by Ohm’s law.
With IC approximately equal to IE and a 5-kilohm output load, the example calculates 50 V output and a nominal voltage gain of 250.
The example illustrates how low input resistance and a larger output load can convert similar input and output currents into a larger output voltage.
The output load combines in parallel with the amplifier’s output resistance; the lecture assumes about 100 kilohms at the BJT output, much larger than the 5-kilohm load.

38:03 Common-Emitter Characteristics and Current Gain Beta

In common-emitter configuration, the emitter is the reference, the base is the input, and the collector is the output.
The input characteristic is base current IB versus base-emitter voltage VBE; the output characteristic is collector current IC versus collector-emitter voltage VCE.
The output curves show cutoff, a low-voltage region where current changes with VCE, and an active region where current is comparatively steady.
The lecture defines beta as IC/IB and AC beta as delta IC/delta IB at constant VCE; its graph example estimates AC beta as 100 and DC beta as about 108.

43:02 Alpha-Beta Conversion and Common-Collector Wrap-Up

Combining IE = IC + IB with IC = beta times IB yields alpha = beta/(beta + 1), or beta = alpha/(1 - alpha).
In common-collector configuration, the collector is the reference, the base is the input, and the emitter is the output.
The lecture notes that common-collector output resistance is lower than the common-base output resistance.
BJT datasheets list operating limits such as maximum voltage and current; the lecture closes by directing students to recorded BJT analyses before the next MOSFET lecture.
