Overview

The lecture develops robot kinematics from basic revolute and prismatic joints through coordinate-frame transformations and homogeneous matrices. It derives forward and inverse kinematics for a planar robot, explains right-hand rotation matrices and their orthonormal properties, then builds a two-revolute-joint robot model whose end-effector position is computed from chained 4×4 transformations.

Key takeaways

A planar robot with one revolute joint and one prismatic joint has forward kinematics px = d cos θ and py = d sin θ; for a target (3, 4), inverse kinematics gives d = 5 and θ ≈ 53.13 degrees.
A pure rotation matrix is orthonormal and has determinant 1, so it preserves vector lengths; its inverse is simply its transpose.
Robot frame assignment determines transformation signs: revolute-joint axes define Z directions, and each Xn axis must intersect the preceding joint axis Zn−1.
A 4×4 homogeneous transformation combines orientation in its upper-left 3×3 block with translation in its final column, expressed relative to the old frame.
For the two-link robot, chaining transforms yields px = A2 cos θ1 + A4 cos(θ1 + θ2), py = A2 sin θ1 + A4 sin(θ1 + θ2), and pz = A1 + A3.
Robots with many degrees of freedom, such as the cited 15-to-16-DoF worm robot, often require numerical inverse kinematics and efficient algorithms for real-time obstacle response.

Chapters

0:00 Robot Joints and Kinematic Diagrams

The two basic robot joint types are revolute joints, which rotate, and prismatic joints, which translate.
A spherical shoulder joint can be modeled as three perpendicular revolute joints.
A kinematic diagram simplifies a physical robot while retaining its major dimensions for deriving forward and inverse kinematics.

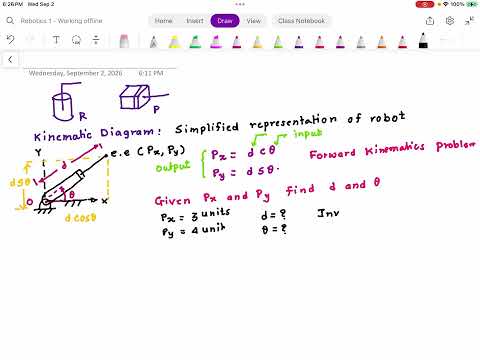

2:00 Planar Robot Forward Kinematics

A planar robot with one revolute joint and one prismatic joint has two degrees of freedom: angle θ and extension d.
With a fixed X-Y coordinate frame, the end-effector coordinates are px = d cos θ and py = d sin θ.
Forward kinematics maps joint variables to end-effector position.

6:30 Inverse Kinematics for a 3-4-5 Example

For px = 3 and py = 4, the Pythagorean theorem gives d = 5.
The angle follows from θ = atan2(py, px), approximately 53.13 degrees for the 3-4-5 example.
Inverse kinematics starts with a target position and solves for the required joint variables.

10:43 Why 3D Inverse Kinematics Gets Harder

Three-dimensional targets provide position equations for px, py, and pz, but robots can have more joint variables than those equations determine.
Multiple sine and cosine terms produce nonlinear, often transcendental equations that are harder to solve algebraically.
Geometric reasoning can solve simple cases, while larger systems may require numerical methods.

14:36 Numerical Inverse Kinematics and High-DoF Robots

MATLAB inverse-kinematics tools can solve complicated joint configurations numerically.
A cited worm-robot project had roughly 15 or 16 degrees of freedom and needed fast IK calculations to react to obstacles and update its path.
Geometric algebra and other advanced formulations can help compute solutions quickly enough for real-time control.

16:26 Right-Hand Coordinate Frames and Positive Rotation

Robot coordinate frames use the right-hand convention: X points along the thumb, Y along the first finger, and Z along the second finger.
A rotation is positive when curled fingers follow its direction and the thumb points along the positive axis.
The convention avoids ambiguity in calling a rotation clockwise or counterclockwise, since that appearance changes with viewpoint.

19:28 The Z-Axis Rotation Matrix

A rotation about Z uses the matrix [[cos θ, −sin θ, 0], [sin θ, cos θ, 0], [0, 0, 1]].
The unchanged third axis appears as the final row and column, with a 1 in the Z-Z position.
Multiplying a vector by this matrix changes its direction without changing its length.

21:58 Rotation-Matrix Determinant and Length Preservation

The determinant of the Z-rotation matrix is cos² θ + sin² θ = 1.
A determinant of 1 is consistent with a pure rotation: the transformation preserves scale and vector magnitude.
For example, a vector with components (1, 1, 0) is rotated by substituting those components and the chosen angle into the matrix.

25:55 Orthogonality of Rotation-Matrix Rows and Columns

The rows and columns of a rotation matrix are mutually perpendicular and have unit length.
Perpendicular vectors have a dot product of zero; the lecture demonstrates this with vectors (2, 0, 0) and (0, 1, 0).
These properties make rotation matrices orthonormal and distinguish rotations from transformations that stretch or skew vectors.

29:45 Using the Transpose to Reverse a Rotation

For an orthonormal rotation matrix R, the inverse is its transpose: R⁻¹ = Rᵀ.
Given x = R y, the original coordinates can be recovered as y = Rᵀ x.
Transposing swaps rows and columns, providing a simpler inverse than computing an adjugate and determinant.

38:38 Matrix Inversion Through a Cost Example

The burger-price example explains inversion: if total cost equals price per burger times burger count, divide by the price to recover the count.
For vectors, the same principle becomes multiplication by the inverse matrix on both sides of the equation.
The rotation-matrix transpose shortcut is useful because a general 3×3 matrix inverse is more involved.

43:47 Changing Coordinates Between Rotated Frames

A vector may have coordinates such as (3, 4) in one frame and different coordinates after the axes rotate by 25 degrees.
Coordinate transformations express the same geometric vector in a new frame; they do not move the vector itself.
The direction of the transformation matters: reversing between frames uses the inverse rotation, equivalent to reversing the rotation angle.

53:18 Recovering Rotation from Two Vector Coordinates

The lecture sets up a Z-axis rotation by relating vector coordinates in two frames through the rotation matrix.
Two component equations can sometimes simplify when added or subtracted, allowing sine or cosine terms to cancel.
A rotation must preserve vector magnitude, so the input and output coordinate vectors must have equal norms.

57:55 Solving Trigonometric Rotation Equations

When equations contain mixed sine and cosine terms, half-angle substitutions can rewrite them using tan(θ/2).
Squaring and adding component equations can sometimes use sin² θ + cos² θ = 1 to eliminate terms.
MATLAB's solve function is an alternative for symbolic equations, while numerical IK methods handle larger robot systems.

1:12:07 Building a Two-Revolute-Joint Robot Model

The lecture shifts to a three-dimensional robot with two revolute joints, two links, and a tool at the end-effector.
The kinematic diagram replaces the physical assembly with joints, links, and major dimensions labeled A1 through A4.
Forward kinematics will map θ1 and θ2 to the end-effector position px, py, and pz.

1:16:05 Assigning Robot Frames with Joint-Axis Rules

Each revolute-joint axis is assigned as a Z-axis, such as Z0 and Z1 through the joint centers.
The end-effector receives a final frame, even if it does not contain another revolute joint.
The second frame-placement rule is to choose Xn so it intersects the preceding joint axis Zn−1.

1:23:53 Choosing X-Axes and Completing Right-Hand Triads

Where several X-axis directions satisfy the intersection rule, the diagram chooses consistent directions for X0, X1, and X2.
The Y-axes follow from the right-hand rule once each X and Z direction is selected.
Joint rotations θ1 and θ2 are measured about their assigned Z-axes.

1:25:47 Link Dimensions and the First Rotation Matrix

The robot's major offsets are labeled A1 through A4, with vertical and horizontal distances assigned between successive frames.
The first relative rotation, from frame 0 to frame 1, is a Z-axis rotation by θ1.
Forward kinematics targets the coordinates of frame 2 in the fixed frame 0.

1:37:09 Projection Matrices Between Adjacent Frames

The rotation matrix is formed by projecting the new frame's X, Y, and Z axes onto the old frame's axes.
Because the selected axes are aligned before rotation, the projection matrix is the identity and leaves the Z-rotation matrix unchanged.
If an axis were drawn in the opposite direction, its projection would be negative and the corresponding matrix signs would change.

1:40:00 Homogeneous Transformations Combine Rotation and Translation

A homogeneous transformation is a 4×4 matrix that stores a 3×3 rotation matrix and a translation vector.
The final row is [0, 0, 0, 1], while the top-right column contains frame displacement.
Translation components are expressed in the old frame, allowing the transform to describe the relative pose between frames.

1:44:01 Expressing the First Link Offset in Frame 0

The first frame offset includes a fixed vertical distance A1 along Z0, which does not change with θ1.
The horizontal distance A2 rotates with the first joint, so its frame-0 components are A2 cos θ1 and A2 sin θ1.
The resulting 0H1 matrix captures both the θ1 rotation and the A1/A2 translation.

1:48:30 Constructing the Second Link Transform

The relative rotation from frame 1 to frame 2 is a Z-axis rotation by θ2.
The second translation contains a fixed vertical offset A3 and a horizontal link A4.
When θ2 changes, A4 contributes components A4 cos θ2 and A4 sin θ2 in frame 1.

1:55:22 Chaining the Two 4×4 Transformations

The overall transform is 0H2 = 0H1 × 1H2, combining both joint rotations and all link offsets.
The product's upper-left 3×3 block gives the orientation of frame 2 relative to frame 0.
The product's final translation column gives the end-effector position in frame 0.

1:57:57 Expanding the Homogeneous Matrix Product

The 4×4 multiplication is expanded row by row, with the lecture emphasizing the first row and the translation column.
The rotation terms combine using sine and cosine angle-addition identities.
The final orientation matrix represents a total rotation of θ1 + θ2 about Z.

2:03:28 Simplifying the End-Effector Position

The horizontal position simplifies to px = A2 cos θ1 + A4 cos(θ1 + θ2).
The second horizontal coordinate is py = A2 sin θ1 + A4 sin(θ1 + θ2).
The vertical coordinate combines the fixed offsets A1 and A3.

2:07:09 Checking Forward Kinematics with Planar Geometry

Viewed from above, the two horizontal links have lengths A2 and A4 and orientations θ1 and θ1 + θ2.
Resolving each link into X and Y components reproduces the matrix-derived px and py equations.
This geometric check confirms that the end-effector orientation accumulates as θ1 + θ2.

2:10:34 Take-Home Kinematics Problem for a Revolute-Prismatic Robot

The assigned three-dimensional example combines a revolute joint with a prismatic cylinder whose extension is d.
Students must draw the kinematic diagram, determine 0R1 and 1R2, construct 0H1 and 1H2, and calculate 0H2.
The final deliverables are px, py, and pz, with the assignment due the following Wednesday at 11:59 p.m.

2:12:30 Completing the Coordinate Frames for the Assignment

The partial diagram identifies the fixed offset A1, the cylinder offset A2, the variable extension d, and the revolute angle θ.
The frame assignment is intentionally incomplete, so students must apply the joint-axis and axis-intersection rules.
The goal is to reproduce the end-effector coordinates using the homogeneous-transformation method rather than relying only on a known answer.
