11:1 Pipe Flow - Irregular Section Conduits and Type I, II and III Problems

Overview

Derek Elsworth develops pipe-flow methods for irregular conduits and classifies problems by which of geometry, flow rate, and pressure drop are known. He explains hydraulic diameter and laminar friction corrections, then shows how Moody-chart friction factors support direct Type I calculations and iterative Type II flow-rate calculations when velocity—and therefore Reynolds number—is initially unknown.

Key takeaways

For an irregular duct, hydraulic diameter D_h = 4A/P_w replaces ordinary pipe diameter in Reynolds-number and head-loss calculations; a 0.30 m × 0.15 m rectangular duct has its characteristic dimension set by its area and wetted perimeter.
Circular-pipe laminar friction follows f = 64/Re, while other cross-sections require a shape-dependent coefficient in f = C/Re.
Type I problems are direct when geometry and flow rate are known, but Type II and III problems often require iteration because an unknown flow rate or geometry prevents direct determination of Reynolds number and friction factor.
In turbulent pipe flow, head loss varies approximately with velocity squared, so a large increase in velocity can dominate relatively modest changes in friction factor.
A Type II calculation can converge by guessing a turbulent friction factor, solving for velocity from known head loss, recomputing Reynolds number and friction factor, and repeating until the values agree.

Chapters

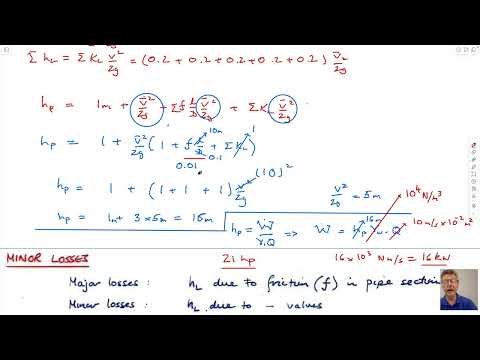

0:00 JetLev Example: Estimating Jet Size and Power

The earlier JetLev calculation assumed one 100 mm jet to simplify the setup.
The estimated power was about 16 kW, or 26 horsepower—roughly one-tenth of a 300-horsepower truck.
The example links nozzle velocity and pipe losses to the pump power needed to lift a person.

2:45 U.S. Pipelines, Energy Storage, and Salt Caverns

A U.S. pipeline map distinguishes natural-gas transmission and hazardous-liquid routes, illustrating infrastructure that supplies major population centers such as the Northeast.
Salt caverns can store natural gas or hydrogen; hydrogen can be produced by electrolyzing water and later used for power generation or fuel cells.
Caverns are created by circulating water through a cased well to dissolve salt, and can support gas storage cycles of roughly 6–12 hours.
Pipeline networks also connect storage and energy facilities, including the Strategic Petroleum Reserve in Louisiana.

8:00 Pitot Tubes and Aircraft Airspeed

A forward-facing Pitot tube measures stagnation pressure, while side ports measure static pressure.
The pressure difference gives airspeed, which GPS alone cannot provide and pilots need for flight decisions.
Ice can block Pitot instrumentation; Elsworth recalls the Air France flight from Rio to Paris as an example of the risk.

11:15 JetLev Recap: From Momentum to Type I Pipe Flow

The JetLev sequence first uses momentum to determine the jet velocity required to support a person.
Velocity gives Reynolds number; Reynolds number gives friction factor; the energy equation then determines pump head.
The calculation combines elevation, nozzle velocity head, pipe major losses, and fitting losses.
Elsworth corrects a prior length-scaling error: increasing the modeled pipe length from 10 m to 100 m substantially raises head loss and estimated power.

14:30 Reading the Moody Chart and Relating Roughness to Friction

The Moody chart relates friction factor to Reynolds number and relative roughness, separating laminar, transitional, and turbulent regimes.
For circular-pipe laminar flow, the Darcy friction factor is 64/Re and is independent of roughness.
At Re around 10⁶, a smooth-pipe friction factor near 0.01 can rise to roughly 0.03 for relative roughness near 0.01.
Because pipe head loss is proportional to friction factor, rougher walls increase drag and required pumping head.

19:40 Irregular Conduits: Hydraulic Diameter and Laminar Corrections

For noncircular cross-sections, use hydraulic diameter, D_h = 4A/P_w, where A is flow area and P_w is wetted perimeter.
For a circular pipe, this definition reduces to the ordinary diameter; for an annulus, the dimensions of both boundaries determine the flow geometry.
Laminar friction retains the form f = C/Re, but C depends on cross-sectional shape; examples include annuli and thin gaps between parallel surfaces.
The shape-dependent coefficient is specifically a laminar-flow correction, not a replacement for turbulent Moody-chart relationships.

24:55 Worked Air-Duct Example Using Hydraulic Diameter

The example duct measures 0.30 m by 0.15 m and is 12 m long.
Its hydraulic diameter is calculated from four times the rectangular flow area divided by the wetted perimeter.
For air, Elsworth gives dynamic viscosity of about 10⁻⁵ Pa·s, compared with about 10⁻³ Pa·s for water.
With flow rate, roughness, and fluid properties, calculate average velocity and Reynolds number, read friction factor from the Moody chart, and then find head loss.

33:05 Type I, II, and III Pipe-Flow Problems

Type I: geometry and flow rate are known; determine pressure drop or head loss.
Type II: geometry and pressure drop are known; determine flow rate or velocity.
Type III: flow rate and pressure drop are known; determine the required geometry.
Type II and III generally require iteration because an unknown velocity means Reynolds number—and thus friction factor—cannot be calculated directly.

38:00 Laminar and Turbulent Friction-Factor Calculations

For a circular pipe, Reynolds number can be written in terms of velocity; with water in the example, Re is approximately 10⁴ times velocity in m/s.
At velocity 0.1 m/s, Re is about 1,000 and the laminar friction factor is 64/Re, or 0.064.
At velocity 1 m/s, Re is about 10,000; a smooth-pipe friction factor is roughly 0.03, while relative roughness of 0.01 raises it to about 0.042.
The higher-velocity case produces much greater head loss because the turbulent energy-loss relation scales with velocity squared.

44:55 Type II Example: Iterating Velocity and Friction Factor

For a 1 cm diameter, 1 m long pipe with 0.1 m of head loss, Elsworth assumes turbulent flow and initially estimates friction factor from relative roughness of about 0.01.
The first friction-factor estimate, around 0.038, gives a velocity near 0.7 m/s; that velocity implies Reynolds number on the order of 7,000.
Reading the Moody chart at the updated Reynolds number gives a revised friction factor, after which velocity is recalculated to about 0.66 m/s.
Repeat the velocity–Reynolds number–friction factor check until the friction factor is consistent; in laminar flow, substituting f = 64/Re makes head loss scale linearly with velocity rather than velocity squared.
