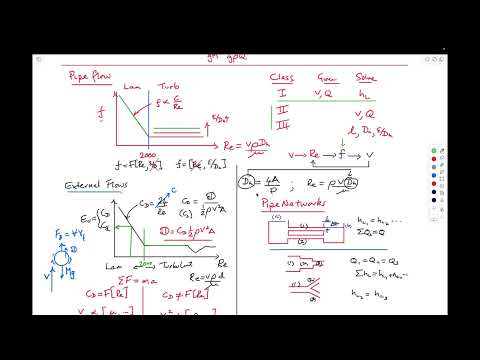

Review Session for Midterm 4 [2025]

Overview

Derek Elsworth reviews the three topics on Midterm 4: pipe networks, external flow, and open-channel flow, emphasizing how to select equations and identify flow regimes. He explains energy balances and Moody-chart friction factors for pipe systems, drag-based force estimates for external flows, and Manning’s equation, hydraulic radius, and Froude-number regimes for open channels.

Key takeaways

Midterm 4 covers material since section 9.11.2 and is closed-book and closed-notes, with an equation sheet provided.
Pipe-network calculations depend on topology: parallel branches have equal head drops and partition total flow, whereas series pipes carry equal flow and accumulate head losses.
When pipe velocity is unknown, solve iteratively by estimating friction factor, calculating velocity and Reynolds number, and checking the friction factor against the Moody chart.
External-flow drag force scales with fluid density, velocity squared, drag coefficient, and reference area, so errors in velocity have a squared effect on the force estimate.
In open-channel flow, discharge is Q = velocity × area, and the Froude number distinguishes subcritical, critical, and supercritical conditions with different wave-propagation behavior.

Chapters

0:00 Pipe Energy Balances, Moody Charts, and Network Rules

Write Bernoulli’s energy equation between upstream and downstream points, including positive pump head, negative turbine head, and major and minor losses.
Calculate pump head from power divided by mass flow rate and gravitational acceleration; major pipe losses use length-to-diameter ratio and a Moody-chart friction factor.
For laminar pipe flow, friction factor varies inversely with Reynolds number; problems without a given velocity require iterative estimates of friction factor, velocity, and head loss.
Parallel pipes share the same head drop and their flow rates sum to the total; series pipes carry the same flow rate and their head losses sum.

5:35 External-Flow Drag and Force Estimates

Use Reynolds number based on fluid velocity and a characteristic dimension, such as the diameter of a cylinder or sphere, to identify the flow regime.
Estimate drag force from the drag coefficient, fluid density, velocity squared, and reference area; for a platform, the relevant area may be its exposed area.
The drag coefficient varies with Reynolds number in laminar flow; in turbulent flow, the review describes it as largely independent of Reynolds number.
When solving for velocity, a turbulent drag relation commonly produces a velocity-squared term, while a laminar relation can produce a linear velocity term.

7:31 Open-Channel Flow: Manning Equation and Froude Regimes

For a rectangular channel, hydraulic radius is flow area divided by wetted perimeter: with width b and depth y, R = by/(b + 2y).
For uniform flow, Manning’s equation relates mean velocity to roughness coefficient, hydraulic radius raised to the 2/3 power, and channel slope; multiply velocity by area to obtain discharge Q.
A fixed discharge can occur as deep, slow subcritical flow or shallow, fast supercritical flow because open-channel depth can vary.
The Froude number marks the transition: Fr = 1 is critical flow, while Fr below or above 1 indicates subcritical or supercritical flow; upstream wave propagation is possible in subcritical flow but not supercritical flow.

Summary, takeaways, and chapters were generated by AI from the video's transcript and may contain errors. The video belongs to its creator, Derek Elsworth.
