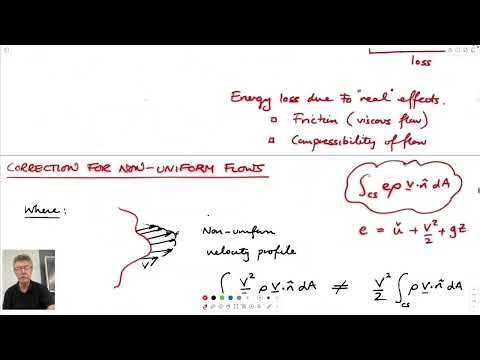

8:2 Conservation of Energy - Examples, Differential Representation

Overview

Derek Elsworth connects conservation of energy to practical pipe-flow calculations, showing how pumps add head, friction removes it, and Bernoulli’s equation relates pressure, velocity, and elevation between upstream and downstream points. He then derives porous-media flow from mass conservation and Darcy’s law, explaining how the resulting pressure- and head-diffusion equations support reservoir and groundwater models.

Key takeaways

For a pipe system, Bernoulli’s equation balances upstream and downstream elevation, pressure, and velocity heads while adding pump head and accounting for positive frictional head loss.
Pump head equals power divided by volumetric flow rate, density, and gravity; turbine extraction has the opposite sign from pump input.
In the reservoir-pump example, the 100-foot elevation rise and a 4-inch pipe with loss coefficient 20 are combined with the pump curve to solve for the operating flow rate.
Darcy’s law supplies the porous-medium pressure-gradient relationship, while mass conservation supplies the accumulation balance; together they yield the governing flow equation without momentum equations.
Porosity and compressibility determine how pressure changes store mass in a porous formation, while permeability and viscosity control how quickly fluid moves.
Groundwater head-diffusion and petroleum pressure-diffusion equations share the same conservation structure, but use different variables and parameters to suit their operating conditions.

Chapters

0:00 Opening: St. Martin Runway Footage and Class Setup

The opening discussion briefly considers spectators near the runway on St. Martin in the Caribbean and the risks of jet-blast abrasion.
The class begins with informal discussion before turning to conservation of energy and fluid-flow examples.

1:58 Ingrain’s CT-Based Permeability Measurements from Drill Cuttings

Ingrain, later acquired by Halliburton, used CT scans of shale drill cuttings to estimate pore structure at the scale of a small fingernail or smaller.
A numerical flow simulation applies upstream and downstream pressures, calculates volumetric flow, and uses the result to estimate permeability.
The measured permeability can inform larger-scale reservoir models.

3:00 Voxel Flow Models, Conservation Laws, and Realistic CGI

Numerical fluid models divide a domain into small grid cells and calculate fluid transfer between neighboring cells.
Three momentum equations and a continuity equation track velocity, pressure, and mass accumulation in each cell.
The same simulation techniques support CGI water effects; realistic rendering depends on honoring physical cues such as droplet size and flow behavior.

7:00 Groundwater Flow Uses Darcy’s Law Instead of Momentum Equations

A groundwater model represents the subsurface as a grid and applies boundary conditions to calculate flow through rock beneath an impoundment.
Unlike full fluid simulations, porous-medium groundwater flow can be modeled with mass conservation and Darcy’s law rather than momentum conservation.
Darcy’s law represents energy loss through a porous material as a head drop from upstream to downstream.

9:00 Bernoulli Energy Accounting: Pump Head, Turbines, and Losses

The energy equation accounts for elevation head, pressure head, velocity head, and head loss; an enthalpy form also includes internal energy.
Heat and work terms extend the first-law formulation: a pump adds energy, while a turbine extracts it.
Pump head is power divided by mass flow rate and gravity, or equivalently power divided by volumetric flow rate, density, and gravity.
Head loss is always positive and reduces useful energy; the equation must be written consistently from upstream to downstream when including pumps and losses.

15:00 Reservoir-to-Reservoir Pump Example with a 4-Inch Pipe

The example has a 100-foot elevation rise, a 4-inch pipe, and a dimensionless pipe-loss coefficient of 20.
The pump curve is 200 minus 100 times volumetric flow rate, giving 200 feet of head at zero flow and zero head at a flow rate of 2 in the curve’s units.
Applying Bernoulli between large reservoirs sets the surface velocities to zero and uses atmospheric gauge pressure at both surfaces.
The unknown flow rate is found by equating pump head to the 100-foot elevation rise plus the pipe loss, with pipe velocity expressed as flow rate divided by area.

24:00 Gasoline Pipe Example: Pressure Difference with and without a Pump

The gasoline has a density equal to 68% of water’s, and the volumetric flow rate is 0.12 cubic meters per second.
The head-loss coefficient is 0.3, referenced to the velocity head at section 1; different pipe areas require separate velocities linked by continuity.
Bernoulli’s equation relates the pressure difference to elevation change, velocity-head change, pump head, and friction loss.
The example considers both zero pump power and 20 kilowatts of pump input; the specified flow rate lets the pump power be converted to head.

35:00 From Digital Rock Measurements to Reservoir-Scale Grid Models

CT-derived pore structure and simulated flow can provide permeability inputs for a continuum model of a reservoir or aquifer.
A continuum model divides the domain into cells analogous to differential volumes such as dx, dy, and dz.
Each cell balances incoming and outgoing mass; any mismatch appears as accumulation associated with changing pressure.

37:30 Deriving Porous-Medium Flow from Continuity and Darcy’s Law

Mass accumulation in a differential cell includes changes in density or volume, while the flow terms compare mass entering and leaving its faces.
Darcy’s law relates average superficial velocity to permeability, viscosity, and pressure gradient: velocity is proportional to minus permeability over viscosity times the pressure gradient.
Substituting Darcy velocity into continuity turns the mass balance into a pressure-flow equation.
Fluid compressibility, expressed as the inverse of a bulk modulus, converts density change into a pressure-change term.

45:00 Porosity, Pressure Diffusion, and Groundwater Head Equations

Because fluid occupies only pore space, porosity—the void volume divided by total volume—must be included in the accumulation term.
For reservoir applications, the resulting pressure equation combines compressibility with permeability divided by viscosity and a second spatial pressure derivative.
Groundwater models express pressure as hydraulic head and use specific storage and hydraulic conductivity in a corresponding head-diffusion equation.
Petroleum models often use pressure because phase changes and temperature-dependent viscosity matter; shallow aquifer models commonly use head because temperature and hydraulic conductivity vary little.

Summary, takeaways, and chapters were generated by AI from the video's transcript and may contain errors. The video belongs to its creator, Derek Elsworth.
