[HD] EECS4302 F26 - 2026-09-15 (Tuesday) - Lecture 2

Overview

Jackie Wang introduces compilers as automated, semantics-preserving transformations between languages, using examples such as Java-like object-oriented code mapped to relational databases. The lecture develops a feasibility test based on input-language scope and whether the target can express the source concepts, connects compiler implementations to ANTLR 4 grammars, and explains why analyzing arbitrary runtime behavior can be undecidable. It closes with software-design guidance for the course project, including modularity and information hiding.

Key takeaways

A compiler’s correctness depends on preserving program meaning, not merely generating syntactically valid output; its transformation rules must connect the semantics of the source and target.
Compiler feasibility requires both a clear input scope and a target language expressive enough to represent every supported source concept.
Compiler implementation has two distinct levels: individual program instances are transformed, while grammars define which source and target instances are valid.
A tool that must infer the runtime outcome of arbitrary programs may need to simulate execution; non-terminating inputs make complete, guaranteed analysis impossible without additional constraints.
Good project structure balances modularity against over-fragmentation, giving each cohesive module a focused responsibility.
Information hiding protects external users from implementation changes: keep public interfaces stable and place volatile design decisions in private code.

Chapters

0:00 Course Reminders and Java Preparation for the ANTLR 4 Tutorial

Jackie Wang notes that recordings, digests, course notes, templates, and the syllabus materials are available to students.
An ANTLR 4 compiler-building tutorial is planned around weeks four or five and will require substantial Java programming.
Java experience from courses 2030 and 21101 should be sufficient; advanced algorithms from 3101 are not required.

1:52 A Compiler Transforms Source Programs into Target Programs

A compiler is a software system that transforms an input program into an output program; it is not hardware.
Source and target languages may differ, as in Java-to-C++ or C-to-SQL translation, or may be the same, as in Java-to-Java transformation.
The lecture introduces semantic domains before discussing syntax and implementation details.

4:40 Object Orientation as a Semantic Domain

A semantic domain captures meaning for a particular application through a defined vocabulary.
The object-oriented domain includes classes, objects, interfaces, abstract classes, generics, and inheritance.
Inheritance encompasses related concepts such as polymorphism and dynamic binding.

7:25 Relational Databases and Object-to-Database Mapping

The relational-database domain includes entities, tables, primary and foreign keys, queries, and stored procedures.
An object-relational bridge can map object-oriented concepts such as classes into database structures such as tables.
Mapping arbitrary methods into SQL queries or stored procedures is substantially harder than mapping classes to tables.

11:17 Logic as a Semantic Domain and the Compiler’s Basic Role

The logic domain includes propositions, predicates, functions, relations, and sets.
Propositional operations include conjunction, negation, disjunction, and implication; predicates add universal and existential quantification.
At a high level, a compiler automates a transformation from one semantic domain to another after developers define its rules.

14:05 Translation Must Preserve the Input Program’s Semantics

A transformer maps one syntax to another, while a translator must also preserve the meaning of the source.
Compiler rules should implement semantics-preserving steps rather than produce arbitrary target code.
A compiler report must explain why the generated output retains the input program’s meaning.

17:20 Choosing the Input Language and Its Supported Features

A Java-like compiler needs a precisely defined input syntax, potentially using a context-free grammar.
Project teams must decide whether to support all object-oriented features or a practical subset, such as classes and integer attributes.
Starting with a small, working compiler and documenting unsupported features helps keep a roughly six-week project feasible.

26:18 Testing Whether the Target Language Can Express the Source

A key feasibility question is whether every supported input concept has an equivalent representation in the output semantic domain.
Java-to-SQL translation must determine whether database tables and statements can represent the chosen Java-like features.
C pointer arithmetic illustrates a difficult C-to-Java mapping because Java has no direct equivalent for arbitrary address manipulation.

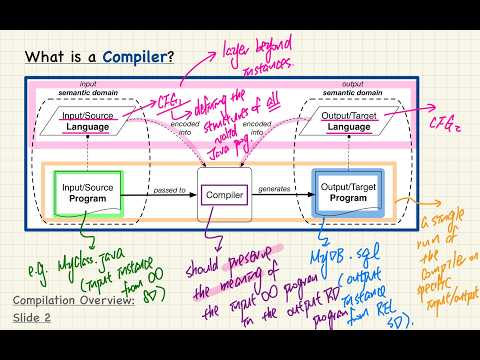

31:03 Two Compiler Layers: Program Instances and Their Grammars

At the instance level, one compiler run maps a particular source file, such as MyClass.java, to an output such as MyDatabase.sql.
The compiler should be deterministic: the same input should produce the same output.
At the language-definition level, separate context-free grammars describe valid source and target programs, and the compiler defines mappings between their constructs.

40:12 Applying the Two Feasibility Questions to Compiler Projects

For assignments and the final project, first clarify exactly which input-language features are in scope.
Then check whether the output’s vocabulary—such as SQL tables, queries, and insert or delete statements—can express those features.
When target expressiveness is unclear, sketching a mapping for representative constructs can expose feasibility problems early.

43:04 The A+ Challenge: Infer a Variable’s Final Dynamic Type

The challenge asks a program to report a variable’s last dynamic type after arbitrary assignments, conditionals, loops, and cross-class imports.
A simple search for the Java keyword new is insufficient because a variable can inherit its dynamic type through assignments from other variables.
Even a limited output—a single line naming the type—requires reasoning about the input program’s execution.

49:30 Why Arbitrary Runtime-Behavior Analysis Can Be Undecidable

The proposed type-analysis tool may need to simulate loops and other execution paths to determine a variable’s final dynamic type.
If an arbitrary input program does not halt, a simulator may not halt either, so it cannot always produce an answer.
General runtime-behavior inference is therefore undecidable in this setting, though restrictions such as guaranteed termination can change the problem.

53:20 Software-Engineering Principles and the Superman Module Anti-Pattern

Jackie Wang lists modularity, information hiding, cohesion, the single-choice principle, object-oriented design patterns, and regression testing as project principles.
A Superman class or module does too many unrelated tasks; modularity instead separates concerns into appropriate classes or packages.
Modules should not be fragmented excessively either: each should be cohesive and avoid unnecessary duplication.

59:50 Information Hiding, Stable Interfaces, and the Student-Class Design Exercise

Information hiding separates a class’s public interface, which external users depend on, from private implementation details.
The public interface should remain stable while implementation choices—such as using a binary search tree versus a hash table—can change privately.
Frequently changed functionality should be considered for placement behind the private boundary to reduce impact on clients.
The closing exercise presents a Student class with resident/non-resident kinds, premium or discount rates, and repeated kind checks in tuition and course-registration methods.
