[HD] EECS4302 F26 - 2026-09-29 (Tuesday) - Lecture 6

Overview

Jackie Wang develops the foundations of formal-language theory needed for Assignment 1: systematic enumeration of strings, distinctions among alphabets, strings, languages, and membership problems, and regular-expression operators. The lecture then introduces DFA and NFA modeling through alternating binary strings, equal-count constraints, dead states, nondeterministic suffix detection, and the equivalence of regular expressions, DFAs, and NFAs.

Key takeaways

A language over Σ is a subset of Σ*, while Σ* contains every finite string over Σ, including ε; the empty language ∅ and the singleton language {ε} are therefore fundamentally different.
The implication Σ₁ ⊆ Σ₂ ⇒ Σ₁* ⊆ Σ₂* follows because every string formed from symbols in Σ₁ can also be formed when the larger alphabet Σ₂ is available.
Regular-expression precedence is Kleene star, then concatenation, then union with +; confusing 10* with (10)* changes the accepted language, as shown by witnesses such as ε and 100.
A DFA over {0, 1} must provide exactly one 0-transition and one 1-transition from every state, whereas an NFA may omit transitions or provide multiple transitions for the same symbol.
Dead states encode irreversible violations: once consecutive equal symbols break the alternating-string condition, no future input can produce an accepted string.
NFAs simplify patterns such as binary strings ending in 01 by nondeterministically guessing the start of the suffix, and subset construction converts that NFA into an equivalent DFA.

Chapters

0:00 Assignment 1 Preparation and Systematic String Enumeration

Jackie Wang prioritizes the minimum formalism needed for Assignment 1 and postpones heavier mathematical notation until after the deadline.
For an alphabet such as {A, B, C}, strings in Σ^4 can be enumerated with a four-level tree, where each root-to-leaf path produces one length-four string.
The tree method prevents omissions by selecting every alphabet symbol independently at each of the four character positions.
The same enumeration strategy can handle restricted-string exercises by pruning branches that violate the restriction.

5:00 Distinguishing an Alphabet from the Language Σ¹

Σ denotes the alphabet itself, such as {0, 1} or {A, B, C}, whereas Σ¹ denotes the set of all strings of length exactly one over Σ.
Σ¹ is a set of singleton strings, not a collection containing Σ¹, Σ², and other powers; that broader collection is associated with Σ+ or Σ*.
The notation difference is categorical: alphabet symbols and strings are different mathematical objects even when they look similar.
Jackie Wang reinforces that Σ⁰ contains the empty string ε, regardless of which finite alphabet Σ is used.

10:00 Interpreting the Implication Σ₁ ⊆ Σ₂ ⇒ Σ₁* ⊆ Σ₂*

If every character in alphabet Σ₁ also appears in Σ₂, then every finite string constructible from Σ₁ is constructible from Σ₂.
The Kleene star includes strings of lengths zero, one, two, and so on, so Σ* contains ε as well as all nonempty strings over Σ.
The example {0, 1} ⊆ {0, 1, 2} illustrates why the second starred language can contain at least all strings from the first.
A proof can be developed by showing that each string in Σ₁* uses only symbols that are also available in Σ₂*.

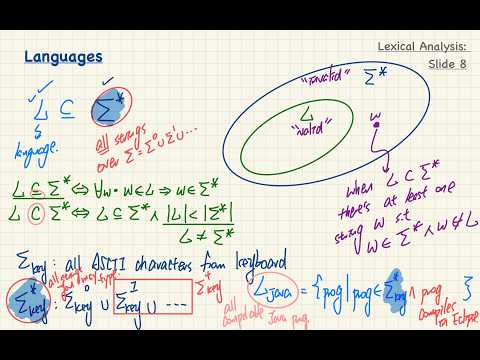

15:00 Languages as Subsets of Σ*

A language L over alphabet Σ is a set of strings satisfying L ⊆ Σ*.
For every string w, w ∈ L implies w ∈ Σ*; the language selects valid strings from the universe of all strings over Σ.
A proper subset L ⊂ Σ* excludes equality with Σ*, meaning at least one string over Σ is not included in L.
The distinction supports practical validation tasks, where valid programs or commands are separated from syntactically possible but invalid strings.

20:00 Keyboard Strings and the Language of Compilable Java Programs

If Σ_keyboard contains all ASCII keyboard characters, then Σ_keyboard* represents every finite string that can be typed, including ε.
The Java language L_Java is modeled as the subset of keyboard strings that form compilable Java programs.
A misspelled keyword or an invalid operation such as multiplying an integer by an incompatible string can place an input outside L_Java.
Set-comprehension notation expresses L_Java by restricting keyboard-generated strings according to whether Eclipse can compile them.

25:00 Empty Language versus the Language {ε}

The language containing only ε is nonempty: L₁ = {ε} accepts exactly one string, whose length is zero.
The empty language L₂ = ∅ contains no strings and rejects every input.
ε is not the same as the empty language: ε is an element, while ∅ is a set with no elements.
Jackie Wang recommends revisiting these two languages later with regular expressions, DFAs, NFAs, and ε-NFAs.

30:00 Computational Problems as Language-Membership Questions

A computational problem can be formulated as deciding whether an input string w belongs to a language L ⊆ Σ*.
For compilation, w may be a keyboard-generated string representing a valid Java program, while w′ may be a keyboard string that fails Java compilation.
A string outside Σ* is not merely an invalid member of L; it is not a valid string over the selected alphabet at all.
The membership perspective unifies recognition tasks such as compilation, pattern matching, and later automata execution.

35:00 Regular Expressions and Their Three Core Operators

Regular expressions provide a textual way to specify regular languages, complementing diagrammatic DFA and NFA representations.
The three central operators are Kleene star for zero-or-more repetition, concatenation for sequencing patterns, and plus for union or alternative choices.
Regular expressions, DFAs, NFAs, and ε-NFAs are equally expressive for regular languages, so equivalent representations can be converted between one another.
Jackie Wang connects regular expressions to ANTLR4 grammar files, where textual patterns are used as parser or lexer inputs.

40:00 Constructing a Regular Expression for Alternating 0s and 1s

The target language contains binary strings with no consecutive equal symbols, so ε, 0, 1, 01, 10, and 0101 are valid examples.
A first construction enumerates four pattern families: repetitions beginning with 01, repetitions beginning with 10, and versions prefixed by a single 1 or 0.
The Kleene star correctly includes ε, allowing zero repetitions of a base pattern such as 01 or 10.
The construction works by covering all possible starting symbols and alternating continuations, with harmless overlap between pattern families.

45:00 Factoring Regular Expressions and Applying Operator Precedence

A second regular-expression construction factors repeated subexpressions, analogous to extracting helper methods from duplicated Java code.
Regular-expression precedence is star first, concatenation second, and union using + last.
Parentheses override the default precedence and can change whether repetition applies to one symbol or to an entire concatenated block.
The examples contrast expressions equivalent to 1(0*) with (10)*, which recognize different sets of binary strings.

50:00 Witness Strings for Proving Regular-Expression Inequivalence

To show two regular expressions are not equivalent, it is sufficient to find one witness string accepted by one expression but rejected by the other.
For expressions corresponding to 10* and (10)*, ε distinguishes them because the starred grouped expression can accept zero repetitions while 10* still requires an initial 1.
The string 100 is another witness for the difference between one initial 1 followed by any number of 0s and repetitions of the complete block 10.
Membership statements should refer to the language denoted by a regular expression, since a string is an element of a language rather than an expression itself.

55:00 DFA Requirements and the Equal-Count Alternation Language

A deterministic finite automaton has exactly one transition for every state and every symbol in the alphabet; for Σ = {0, 1}, each state needs one 0-transition and one 1-transition.
The example language excludes ε and requires alternating 0s and 1s with equal numbers of both symbols.
State meanings are defined by the input read so far, such as having read more 0s than 1s or having already violated alternation.
An accepting state must satisfy all three conditions: nonempty input, equal counts, and alternating symbols.

1:00:00 DFA State Construction with Accepting and Dead States

After reading 0 from the start state, the automaton enters a state representing more 0s than 1s while alternation remains valid.
Reading another 0 from that state creates consecutive 0s, so the machine enters a dead state where the alternation condition can never be restored.
Reading 1 after an initial 0 produces the balanced alternating string 01, reaching an accepting state.
From the accepting state, reading 0 returns to the more-zeros state, while reading 1 enters the dead state because consecutive 1s violate alternation.

1:05:00 NFA Modeling of Strings Ending in 01

The target language consists of binary strings whose final two symbols are 01, with any binary prefix, including the empty prefix.
An NFA can use nondeterminism to guess when the arbitrary prefix ends and the final 01 suffix begins.
One interpretation continues consuming arbitrary 0s and 1s as part of the prefix, while another interpretation begins matching the final 0 followed by 1.
The resulting NFA is easier to design than a DFA for this pattern, but subset construction can convert it into an equivalent DFA; this conversion is relevant to Assignment 1.

1:09:00 Next Lecture, Assignment 2, and Project Preparation

The next class will cover NFAs, ε-NFAs, and additional DFA/NFA conversions, including how strings are processed by each machine.
Jackie Wang plans to show a short illustrative movie clip on Thursday while continuing the automata discussion.
Project materials and Assignment 2 are expected before the reading week, with a brief Thursday briefing on the demanding requirements.
Students are encouraged to use the lecture digest, templates, office-hour appointments, and Assignment 1 exercises for preparation.
