[HD] EECS4302 F26 - 2026-09-24 (Thursday) - Lecture 5

Overview

Jackie Wang introduces Assignment 1 for EECS 4302 and begins a formal treatment of lexical analysis. The assignment, worth 2% and due in two weeks, uses Java in Eclipse to implement regular-expression-to-ε-NFA and ε-NFA-to-DFA transformations; the lecture then defines alphabets, strings, and related set notation needed to understand finite automata and scanners.

Key takeaways

Assignment 1 asks students to implement two language-preserving transformations: regular expression to ε-NFA, and ε-NFA to equivalent DFA.
The assignment’s Java workflow uses Eclipse, console-based `toString` output, expected-output examples, and a web visualization tool rather than JUnit.
Lexical analysis either passes a complete sequence of valid tokens to the parser or stops at the first invalid token with a lexical error.
A finite, nonempty alphabet Σ generates `|Σ|^k` strings of length `k`; for example, lowercase English letters produce 26⁵ five-character strings.
Σ+ excludes the empty string, while Σ* includes ε and therefore contains strings of every length greater than or equal to zero.
Universal statements can be disproved with one counterexample, whereas existential statements require just one valid witness.

Chapters

0:00 Course Schedule, ANTLR 4 Preparation, and Assignment 1

Jackie Wang notes that two weeks remain before reading week and plans to finish the current material beforehand.
The ANTLR 4 tutorial series is emphasized as a central learning and assessment resource.
Lexical-analysis and math-review slides are available; students are encouraged to study DFA, NFA, ε-NFA, and regular expressions ahead of class.
Assignment 1 is a chance to earn credit with a best attempt while still reviewing its learning outcomes and solution after submission.

3:00 Importing the Assignment Starter Project into Eclipse

Download the Assignment 1 starter project ZIP from eClass and launch Eclipse using a workspace folder you can locate later.
Use File → Import → General → Existing Projects into Workspace, then select the archive-file option and browse to the ZIP.
The starter project is intended for Eclipse, not IntelliJ; familiarity with Eclipse will also help with a later programming test.
Keep track of the project folder because the full folder is part of the submission.

6:30 Assignment 1 Requirements: Regular Expressions and ε-NFAs

Assignment 1 is worth 2% of the course grade and is due in two weeks.
Implement a transformation from regular expressions to ε-NFAs and another from ε-NFAs to equivalent DFAs.
The lexical-analysis and math-review lecture slides provide the required background; no separate ECS 2001 textbook reading is required.
A private GitHub repository is acceptable during the semester; Wang says it can be made public after the course.

11:00 Testing Automata with Console Output and a Visualization Tool

Assignment test classes construct automata using Java collections, then rely on methods such as `toString` to print concrete syntax.
Copy the console output into the linked web tool to visualize an automaton; the tool visualizes syntax but does not perform the transformation.
Compare generated output against the provided expected-output examples and use the test cases to check both input and output formats.
The assignment does not use JUnit automation: output is printed to the console and checked manually in the web tool.

15:00 Assignment 1 as a Compiler-Style Intermediate-Representation Transformation

The assignment models a small compiler pipeline: concrete syntax is parsed into a Java ε-NFA representation, transformed, then printed as concrete DFA syntax.
The ε-NFA and DFA are distinct intermediate representations for different automata domains.
The output DFA must be equivalent to the input ε-NFA; an arbitrary DFA is not a valid transformation result.
Students may add methods or attributes, but should preserve the supplied classes’ inheritance and decoration and generally should not add new classes.

22:54 Math Review: Logic, Quantifiers, Sets, and Relations

The math-review slides cover propositional operators such as implication, disjunction, and conjunction.
Predicate logic introduces universal quantification (`for all`) and existential quantification (`there exists`), notation used in later formal definitions.
Reviewing sets and relations supports precise definitions of DFA and NFA.
Wang notes that the math-review material is part of the course and can also appear on the exam.

25:01 Lexical Analysis Scans Source Characters into Tokens

Lexical analysis scans a program file character by character and checks words against token patterns specified with regular expressions or DFAs.
If all words match valid token patterns, the scanner passes a sequence of tokens to the parser.
If even one word fails to match, scanning reports a lexical error and stops before parsing.
A misspelled keyword such as `CLA SS` illustrates an error caught at the lexical-analysis stage.

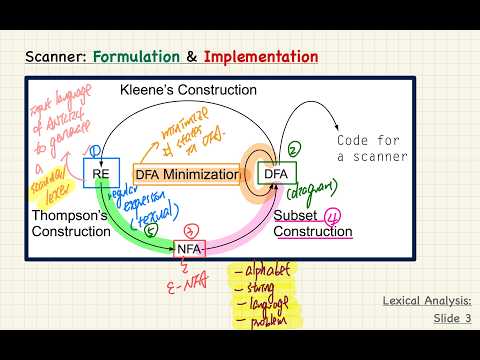

28:13 Automata Roadmap: Regex, NFA Conversion, and DFA Minimization

The formal vocabulary develops in order from alphabet to string, language, and problem.
Regular expressions provide textual language descriptions; DFA and NFA provide automata-based descriptions, with NFA transitions allowing multiple possible destinations for an input symbol.
The subset-construction method converts an NFA to a DFA, while a separate construction converts regular expressions to ε-NFAs.
A DFA can be minimized to an equivalent machine with fewer states; ANTLR 4 and similar generators automate much of this pipeline.

35:34 Alphabets and Set Comprehension Notation

An alphabet is a finite, nonempty set of symbols; the binary alphabet has cardinality 2, while uppercase and lowercase English letters together have cardinality 52.
Set enumeration explicitly lists members, whereas set comprehension uses a constraint after a vertical bar to describe which values to consider.
The decimal-digit set can be specified by integers `D` satisfying `0 ≤ D ≤ 9`; restricting `D` to integers makes the definition precise.
For integer pairs with `1 ≤ X ≤ 3` and `2 ≤ Y ≤ 4`, there are 3 × 3 = 9 possible members.

45:05 Strings, the Empty String, and Type-Correct Membership

A string is a finite sequence of symbols drawn from an alphabet; the empty string ε has length 0.
The sequence `01010` is a string over the binary alphabet, but it is not itself a member of the alphabet `{0, 1}`.
Membership applies to individual symbols in an alphabet, while a multi-symbol string is formed by concatenation.
Vertical bars can denote a set’s cardinality or a string’s length, depending on what appears between them.

49:49 Identity Elements for Concatenation and Familiar Operations

The empty string ε is the identity for string concatenation because placing it before or after a string leaves that string unchanged.
Zero is the identity for addition, and one is the identity for multiplication.
True is the identity for logical conjunction, while false is the identity for logical disjunction.
An identity must preserve the value on either side of the operation; matrix multiplication was raised as a noncommutative case with its own identity matrix.

54:00 Universal and Existential Quantifiers with Witnesses

A universal claim requires a property to hold for every value satisfying its constraint; one counterexample disproves it.
The claim that every positive integer `x` is greater than 10 is false because `x = 2` is a counterexample.
An existential claim needs only one witness: there exists an `x` greater than 0 and 10 is true with witness `x = 11`.
Universal definitions commonly combine constraints with implication, while existential definitions use conjunction to require both conditions.

58:06 Formal Definitions of Σ^k, Σ+, and Σ*

For an alphabet Σ, strings of length `k` can be described as words `w` over Σ satisfying `|w| = k`.
A length-`k` word has character positions from 0 through `k − 1`; each position must contain a member of Σ.
Σ+ is the set of all nonempty strings over Σ, equivalent to the union of strings of lengths 1, 2, 3, and onward.
Σ* contains strings of every length `k ≥ 0`, including ε; ε must be treated as a string, not as a set member without the appropriate set notation.

1:05:26 Counting and Enumerating Fixed-Length Strings

The set of lowercase English strings of length 5 has cardinality 26⁵ because each of the five positions has 26 choices.
For the alphabet `{A, B, C}`, there are 3⁴ strings of length 4.
In general, an alphabet of cardinality `n` yields `n^k` strings of length `k`.
The next class will continue with systematic enumeration of fixed-length strings.
