CMU Introduction To Deep Learning 11-785, Fall 2026: Lecture 12

Overview

Lecture 12 completes the CNN backpropagation review, showing how gradients pass through convolution, pooling, and resampling before examining transform invariance, object localization, and parameter-efficient depthwise convolutions. It connects learned visual features and data augmentation to CNN history, highlighting LeNet-5 and AlexNet’s 2012 ImageNet result, which helped move top-five error from roughly 25% to 18% (and 15% with an ensemble).

Key takeaways

Backpropagation through CNN operations can be derived by reversing the forward computation: max pooling routes each gradient to its selected maximum, mean pooling distributes it evenly, and resampling passes gradients only through entries that depend on the input.
Strided convolution is easier to reason about as ordinary convolution plus downsampling, while fractional-stride convolution can be decomposed into upsampling plus convolution; backward implementations must preserve input sizes at boundaries.
CNN weight sharing gives position invariance, but rotation and scale invariance require transformed filters or training examples; augmentation is typically more practical because enumerating transforms can multiply feature channels.
Object localization needs spatial predictions and labeled coordinates: a bounding-box head can be trained alongside classification, and additional heads can predict orientation or pose joints.
CNN receptive fields expand with depth, supporting a hierarchy from oriented lines to object parts and whole objects; this pattern resembles visual-processing findings associated with Hubel and Wiesel.
AlexNet’s 2012 ImageNet result—about 18% top-five error versus roughly 25% previously, and 15% with a seven-model ensemble—demonstrated that large-scale CNNs could sharply improve visual recognition.

Chapters

0:00 Class Opening and Attendance Setup

The lecture begins with informal conversation before the class starts around 6:00.
Attendance and name tags are discussed in a class of roughly 350 students.

6:00 CNN Recap: Shared Filters and Weak Labels

CNNs detect patterns regardless of position by scanning inputs with shared filters; the same idea applies to 1D, 2D, or 3D data.
Image-level labels can be weak: a flower image is labeled as containing a flower without specifying its location.
Training uses a forward pass followed by backpropagation of the loss through the network.

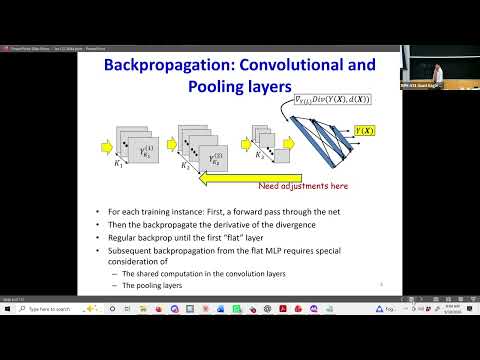

11:00 Backpropagating Through Convolutional Layers

Activation derivatives are computed pointwise using the chain rule at each location in an activation map.
Input gradients use transposed, spatially flipped filters convolved with appropriately padded output gradients.
Filter gradients come from convolving input channels with the corresponding affine-output gradients, then accumulating shared-filter contributions.

13:20 Max and Mean Pooling Gradients

For max pooling, only the input that supplied each window’s maximum receives that output’s gradient.
Overlapping max-pooling windows require gradients to be added when the same input is the maximum in multiple windows.
For mean pooling, each output gradient is distributed evenly over every input in its window.

18:30 Upsampling and Downsampling Backpropagation

Downsampling copies selected input entries, so backward propagation copies their gradients back and leaves dropped positions at zero.
Upsampling inserts zeros that do not depend on the input; gradients at those inserted positions do not propagate, while copied entries pass gradients back.
Convolution with an integer stride can be viewed as convolution followed by downsampling; fractional-stride convolution can be viewed as upsampling followed by convolution.

29:00 Reverse the Forward Computation to Implement Gradients

A practical backpropagation strategy is to reverse the operations and loops used in the forward computation.
For a multiply-and-add operation, gradients are propagated to both inputs using the product rule and accumulated when variables are reused.
The method also handles strided convolution and pooling by reversing the corresponding loops, provided the forward code computes the intended operation.

43:20 CNNs Provide Position Invariance, Not General Transform Invariance

A CNN’s shared filters provide position-invariant pattern detection, but do not inherently provide invariance to rotation, reflection, or scale.
A mathematically explicit approach transforms each filter and scans with every transformed copy, producing additional output channels.
Gradients from transformed filters must be mapped back and combined to update the original filter.

47:00 Why Data Augmentation Beats Enumerating Every Transform

Enumerating rotations, reflections, and scales can make channel counts and computation grow rapidly across layers.
Training-data augmentation instead supplies transformed examples, such as rotated or reflected images, without multiplying model channels.
Augmentation only encourages invariance to the transformations represented in training; it does not guarantee exact general invariance.

56:10 Adding CNN Prediction Heads for Object Localization

A spatial output map can indicate where a flower detector fires, preserving location clues that a single pooled classification score would discard.
Object localization adds a prediction head for bounding-box coordinates and trains it with location labels and a suitable loss.
Additional heads can predict orientation or body-joint coordinates, as in pose estimation systems that regress joint positions.

1:05:07 CNN Extensions: ResNets and Depthwise Convolution

ResNet-style skip connections add a convolution block’s output back to its input, helping gradients pass through very deep networks.
The lecture introduces depthwise convolution as a way to reduce computation by convolving input channels individually rather than computing a separate full set of channel convolutions for every filter.
In the described channel-combination scheme, output channels differ through weights used to combine the individually convolved channels, trading expressive power for fewer parameters and operations.

1:11:34 Depthwise Convolution’s Computation Savings

For n input channels and k standard filters, the lecture counts n × k channel-wise convolutions before producing k output channels.
The described depthwise approach performs n convolutions, then uses different channel weights to form outputs.
A review question emphasizes that channels are processed separately rather than convolved together in one operation.

1:12:36 Receptive Fields Grow with CNN Depth

A first-layer filter responds to patterns within its local input patch.
Later-layer filters operate on earlier feature maps, so their effective receptive fields cover larger regions of the original image.
Deeper representations combine increasingly complex functions of earlier features, making a single fixed visual pattern harder to assign to each filter.

1:14:00 What CNN Filters Learn: Lines, Parts, and Objects

Early CNN filters often learn oriented-line detectors, echoing receptive-field patterns observed in Hubel and Wiesel’s studies of visual cortex.
Examples show deeper layers responding to face parts such as eyes and noses, car parts such as wheels, and eventually whole object types.
For a particular input, backpropagation can help identify which regions contributed to a deeper-layer response.

1:16:16 Training CNNs with Augmentation and Historical Context

Large CNNs can require optimization aids such as Adam, momentum, and batch normalization, and may outgrow the available labeled data.
Common augmentations include rotations, translations, scaling, flips, shears, and small distortions that preserve the class label.
CNNs are used beyond images, including speech, audio, and text; LeNet-5, associated with Yann LeCun, classified handwritten digits before the ImageNet era.

1:19:03 AlexNet’s 2012 ImageNet Breakthrough

ImageNet’s large-scale recognition task used millions of images across 1,000 classes; earlier top-five error was around 25%.
AlexNet trained on about 1.2 million high-resolution images with 60 million parameters, five convolutional layers, and three fully connected layers.
Its design included ReLU activations and training across two GPUs; the reported top-five error fell to about 18%, or 15% when seven networks voted together.

1:22:00 AlexNet’s Representations and the Rapid CNN Progression

AlexNet’s final-layer features grouped semantically similar images: querying with a flower, elephant, ship, or jack-o’-lantern retrieved related examples using Euclidean distance.
The lecture traces reported ImageNet top-five error improvements from AlexNet to later systems, including VGG at 7.3%, GoogLeNet at 6.7%, and ResNet at about 3.5%.
The combination of strong accuracy and semantically meaningful representations helped catalyze the modern deep-learning boom.

1:25:24 Closing the CNN Unit and Previewing Time-Series Models

The lecture concludes that CNNs remain widely used across vision and other domains, with many architectural variants still appearing in research.
The next class will switch topics to time-series models.
Students are directed to Piazza or office hours for follow-up questions.
